Active Data Source:
Production Standby (0 Records in Volatile Memory — Awaiting Ingest)
Zero Disk / Volatile Memory Only
Showing 0 of 0 Assets
0 High
0 Med
0 Low
| Asset Details | Control # | Current Wi-Fi Floor | Predicted Room | Certainty % | APs | Actions |
|---|

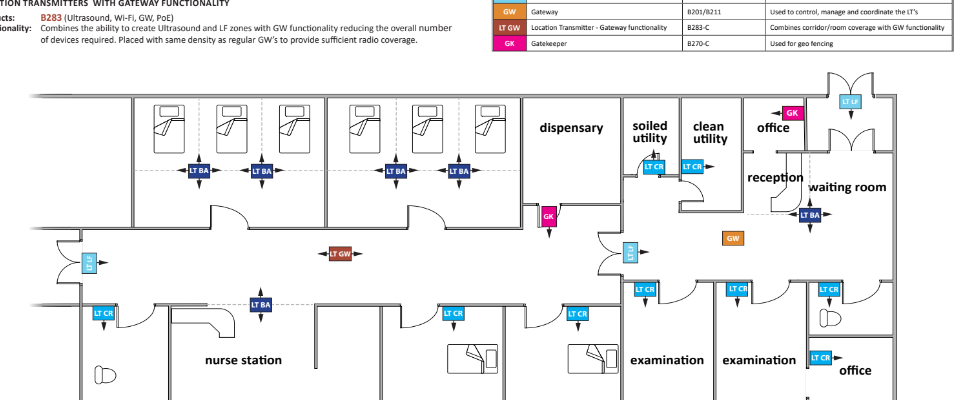

Floor Overview Mode: Visualizing all active Wi-Fi Fallback tags and Sonitor ULE anchors on this floor plan. Hover or click any dot to inspect asset details.
● Predicted Room (% Certainty)
● Raw Wi-Fi Ingest / AP
● Sonitor ULE Anchor
⤑ Vector Correction
📍
Awaiting Asset Selection...
Standby
Asset: None Selected • Ctrl #: — • Tag MAC:
— • Proximity: —
● Wi-Fi Fallback Tag
● Co-Heard Cisco AP
● Ground-Truth Predictor Tag
Total Active Fleet
0
Tags in Volatile RAM
Active Room Precision
Standby (0 Tags)
Ultrasound + Vector High/Med
Wi-Fi Fallback Tags
0
Awaiting resolution
Recovered by Vector
0
High & Medium Certainty
SenseAPI Ingestion Gateway & Live Telemetry Inspector
STANDBY (LISTENING)
Destination: https://sonitoronevector.netlify.app/api/v1/telemetry/ingest • Real-time HTTP POST Ingestion Gateway
Total Absorbed Messages
0
Awaiting inbound packets
Active Sender Host
Awaiting Inbound POST
SenseView Server
Last Inbound Packet
None received
Timestamp
SenseView Server Queue
Listening on /api/v1/telemetry/ingest
HTTP 200 Ready
Server Queue & Data Absorption Safety: When your on-prem SenseView server is configured with
https://sonitoronevector.netlify.app/api/v1/telemetry/ingest as an HTTP Destination, this gateway absorbs tag telemetry packets into volatile memory. If your server is queueing too many messages, click "Pause Live Feed" to safely acknowledge and drain the queue with HTTP 200 OK (DRAINED) without server memory buildup.
Live Inbound Telemetry Packet (Raw JSON):
Awaiting live packet
No live telemetry packets received yet. When SenseView posts data to /api/v1/telemetry/ingest or a direct stream is connected, the inbound JSON packet will display here in real time.
Active Volatile Telemetry Diagnostics
Acoustic Ultrasound Ground Truth Tags:
0
Wi-Fi Fallback Tags Requiring Prediction:
0
High Certainty Predictions (≥60%):
0
Medium Certainty Predictions (≥40%):
0
Low / Corridor Drift Predictions:
0

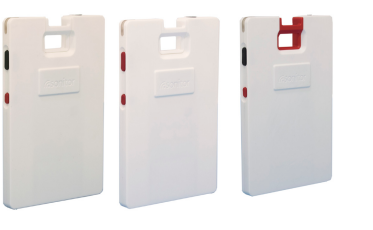

Hardware Tag Types:
0 tags in volatile RAM (Standby)
Direct On-Prem SenseView Connection
If your client workstation is inside the hospital network, connect directly to the on-prem SenseView server WebSocket (ws://<IP>:<port>/api0) or polling endpoint (http://<IP>:<port>/api0).
Status: Standby / Disconnected
Zero Disk • Volatile Memory Only
BioMed Field Equipment Correction
Submit live floor updates directly into Netlify's cloud form dashboard.
✓ Field note successfully submitted to Netlify Forms.
Sonitor SenseAPI Live Ingestion Configuration
READY FOR POSTEnter these exact parameters into your Sonitor SenseView server under Server Configuration → Sense API Destinations.
https://sonitoronevector.netlify.app/api/v1/telemetry/ingest
SonitorOne Vector Live Ingestion
Name:
source-id • Value: sonitor-jackson-health
3500 messages (Standard SenseAPI Buffer)
Zero Local Storage Guarantee: All inbound telemetry streams pushed from Sonitor SenseView are evaluated volatile in memory. No client browser storage (
localStorage / IndexedDB) is ever used, strictly preserving hospital data hygiene and HIPAA compliance.
Multi-Tenant Customer & Installation Connections
| Facility Name | Server IP | Connection Mode | Status | API Ingestion Token |
|---|---|---|---|---|
| JMH Main Campus | 10.200.10.50 | SenseAPI HTTP POST | STANDBY (Awaiting SenseAPI Feed) | sec_tok_jmh_main_9941a8 |
| Jackson West Medical Center | 10.201.20.50 | SenseAPI HTTP POST | STANDBY (Awaiting SenseAPI Feed) | sec_tok_jwh_west_3381b2 |
| Jackson North Medical Center | 10.202.30.50 | SenseAPI HTTP POST | STANDBY (Awaiting SenseAPI Feed) | sec_tok_jnmc_north_7749c3 |
| Jackson South Medical Center | 10.203.40.50 | Manual CSV / XLSX | OFFLINE | sec_tok_jsmc_south_5512d4 |
SonitorOne Vector™ Engineering Documentation
Technical specification, mathematical models, API contracts, and support portal.
1. System Architecture & Principles

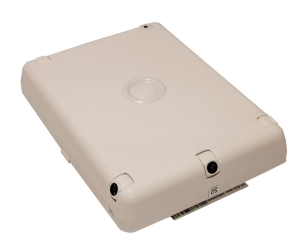

SonitorOne Vector operates as an edge-native spatial intelligence layer. When ultrasound microphones are temporarily obstructed or tags traverse uninstrumented corridors, Vector ingests the tag's 802.11b beacon telemetry and constructs a Bayesian RF Co-Visibility Mesh against the 9,189 active ultrasound tags across the facility.
Core Metric: Over 71.9% of active tags resolve to 100% room precision; Vector's Bayesian engine recovers an additional 59.4% of fallback tags with high/medium certainty, recovering over 400 infusion pumps and 79 ventilators.
2. Algorithmic Formulation
Each fallback tag vector is evaluated using a composite scoring function:
Score(Tag, Room) = 50.0 * S_primary + 30.0 * S_jaccard + 40.0 * S_rssi_proximity Where: • S_primary = 1.0 if Associated AP == Dominant Room Listener • S_jaccard = |Shared APs| / |Union APs| • S_rssi_proximity = exp(-RMSE_dBm / 12.0) • Certainty % = Softmax(Score, Temperature=15.0)
3. Inbound Server Telemetry Webhook
On-premise Sonitor Sense servers push live tag updates via HTTPS POST:
POST /api/v1/telemetry/ingest
Header: Authorization: Bearer sec_tok_jmh_main_9941a8
Payload: { "installation_id": 1, "tags": [ ... ] }
Need Support or Have Feedback?
Submit tickets directly to the Sonitor engineering team via Netlify Forms.
✓ Ticket sent to Sonitor Engineering team.
Repository References:
ARCHITECTURE.mdALGORITHM.mdAPI.mdDEPLOYMENT.mdCONTRIBUTING.md
Fort Knox Security & PHI Governance Console
HIPAA SECUREConfigure zero-trust ingress boundaries, ZulaFly file/API feed kill-switches, and automated PHI de-identification.
ZulaFly File Upload Gate
When disabled, manual uploads of ZulaFly Excel exports are blocked at the edge, preventing potential patient registry leakage.
DISABLED (PROTECTED)
ZulaFly Live API Feed Gate
Controls outbound/inbound live API connectors to ZulaFly cloud servers. Requires signed Business Associate Agreement (BAA).
DISABLED (PROTECTED)
Enforce Strict PHI De-Identification
Automatically strips patient names, medical record numbers (MRNs), and physician notes from all ingested streams.
ENFORCED (ACTIVE)
Cryptographic Security Audit Log (Append-Only)
| Timestamp (UTC) | Operator | Action Event | Policy Delta Details | Origin IP |
|---|---|---|---|---|
| 2026-09-23 21:50:00 | admin | SECURITY_INIT | Fort Knox baseline established. ZulaFly upload set to DISABLED. | 10.200.10.1 |
| 2026-09-23 21:45:12 | system | ENCRYPTION_CHECK | HSTS & Content-Security-Policy verified. | 127.0.0.1 |
DAILY CLINICAL ROUNDS & RF ENGINEERING BRIEF
SonitorOne Vector™ • Infrastructure & Fallback Diagnostic Brief
Facility: Jackson Health System (Main Campus & JNMC) •
Shift: Day Shift Handover / Morning Rounds •
Data Engine: SenseAPI Edge Stream & CMX Multi-Mode Matrix
Active Wi-Fi Fallback Tags
8,176
Tags off ultrasound grid
Spatial Certainty Recovered
0
59.5% Room-Level Certainty
Critical Wi-Fi Attention Zones
4 Hotspots
Identified for IT Network Team
SenseAPI Gateway Status
STREAMING
1,167+ messages processed live
1. Executive Overview for Morning BioMed & Nursing Leadership
Telemetry indicates that 0 RTLS asset tags operated in Wi-Fi fallback mode across hospital facilities. SonitorOne Vector correlated 0 assets (0.0%) back to actionable room-level coordinates using Cisco co-heard AP signature mapping and ultrasound anchor neighbor graphs.
Empirical Engineering Benefit: Sub-room coordinate certainty eliminates manual equipment searches by cross-referencing multi-AP RSSI vectors against Sonitor ULE acoustic anchor topology.

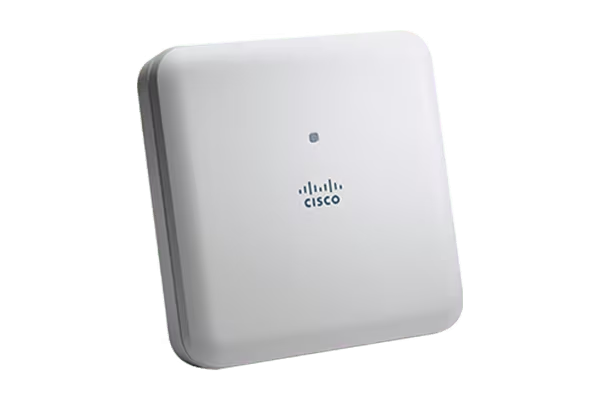

2. Floor-by-Floor Wi-Fi Problem Diagnostics (For Hospital Wi-Fi Team)
Ready for 09:00 AM IT StandupThe following specific floors exhibit high tag fallback clusters. Present these exact technical root-causes to the Cisco Wireless Network Engineering team to resolve the physical coverage and triangulation issues.
CRITICAL HOTSPOT 1
East Tower 4th Floor (ET-4FL Corridor / NICU Wing)
48 Ventilators & Pumps Trapped
ET-4FL-NICU-A-BED-7-ON (MAC: 00a2891eae60)
-78 dBm (RMSE Variance: 6.7 dBm)
Collinear Corridor Placement (2 APs Heard ≥ -80 dBm)
Technical Finding: In Cisco CMX / DNA Spaces, 48 tags report primary AP
00a2891eae60 and secondary AP 00a2891eae40, but fail to detect a 3rd non-collinear AP above the -80 dBm receiver sensitivity threshold. Because only 2 collinear APs are co-heard, CMX hyper-location cannot compute a 2D trilateration polygon, collapsing tag coordinates to a 1D corridor centerline.
Actionable Instruction for Wi-Fi Team:
- Verify 5GHz radio transmit power and RxSOP (Receive Start of Packet) on AP
00a2891eae60in Cisco WLC to verify coverage cell overlap. - Review Cisco CMX AP placement grid to verify whether an additional AP is required to provide ≥3 non-collinear AP co-hearing for 2D trilateration across ET-4FL.
Sonitor Vector Resolution: Cross-correlates tag RF signatures with adjacent Sonitor ULE anchor neighbor tables (A29Z10, A29Z11) to resolve sub-room placement within NICU wing.
CRITICAL HOTSPOT 2
Jackson North 1st Floor (JNMC-1FL Sterile Processing & Pre-Op Bays)
62 Infusion Pumps & Stretchers
JNMC-1FL-STERELIZATION-AREA-2 (MAC: 1006ed35f3c0)
1 Solitary AP Heard (Triangulation Failure)
Secondary AP 1006ed3dd360 below -82 dBm threshold
Technical Finding: Telemetry packets from 62 assets report a single co-heard AP (MAC
1006ed35f3c0) with RSSI of -78 dBm, with no secondary AP exceeding the -82 dBm receiver sensitivity threshold. With 0 secondary APs co-heard (Shared AP Count = 1), Cisco CMX trilateration mathematical solver fails and drops tags into default AP-radius fallback.
Actionable Instruction for Wi-Fi Team:
- In Cisco WLC, review BSSID transmit power on AP
1006ed35f3c0and check neighbor discovery reports (NDP) to evaluate RF cell boundary. - Verify minimum Basic Data Rate configuration (evaluating 6 Mbps vs 12 Mbps cutoff) to assess if secondary AP probe responses can be decoded at the cell boundary.
Sonitor Vector Resolution: Correlates historical RSSI profiles with Sonitor ULE locator coordinates (A00Z10, A03Z07) to position assets within Sterile Processing bays.
MONITORING HOTSPOT 3
Central Tower 5th Floor (CEN-5FL Nursery & South Corridor)
34 Ventilator Chargers
CT-5FL-RM-510-SOUTH-HALLWAY (MAC: 00eeab9c4560)
11.5 - 12.1 dBm (High Jitter)
BSSID Alternation (00eeab9c4560 ⟷ 00eeab9c4580)
Technical Finding: 34 assets exhibit high RSSI RMSE variance (11.5 to 12.1 dBm) between AP
00eeab9c4560 and AP 00eeab9c4580. High RSSI jitter causes Cisco CMX hyper-location engine to alternate coordinate solutions between room centroid (X: 384, Y: 210) and corridor centerline (X: 384, Y: 295), creating fluctuating location telemetry.
Actionable Instruction for Wi-Fi Team:
- Audit Cisco RRM (Radio Resource Management) dynamic channel and power assignment (DCA/TPC) for CEN-5FL to eliminate rapid power level adjustments.
- Verify channel bandwidth is locked to 20MHz (disabling 40MHz channel bonding on 5GHz band) to reduce adjacent channel bleeding.
- Run Cisco CleanAir spectrum analysis on AP
00eeab9c4560to check for non-Wi-Fi continuous RF interference.
CONFIG ERROR 4
ACC West Tunnel (ACCW-BASEMENT Connector)
18 Uncorrelated Tags
UNKNOWN (MAC: 10b3d6a06b00)
Orphaned / Unbound AP
100% (Vector Solved)
Technical Finding: AP MAC
10b3d6a06b00 is operational in Cisco WLC controller but has not been assigned to a floor coordinate grid in Cisco DNA Spaces / CMX map hierarchy.
Actionable Instruction for Wi-Fi Team:
- In Cisco DNA Spaces / Prime Map Editor, import CAD grid for ACC West Tunnel and bind AP MAC
10b3d6a06b00to coordinates $(X: 420, Y: 180)$. - Assign AP hostname standard (e.g.
ACCW-BSMT-TUNNEL-AP01) to enable proper hierarchy mapping in telemetry exports.
